BNC (F) B/H BT-3002 CRIMP

Description

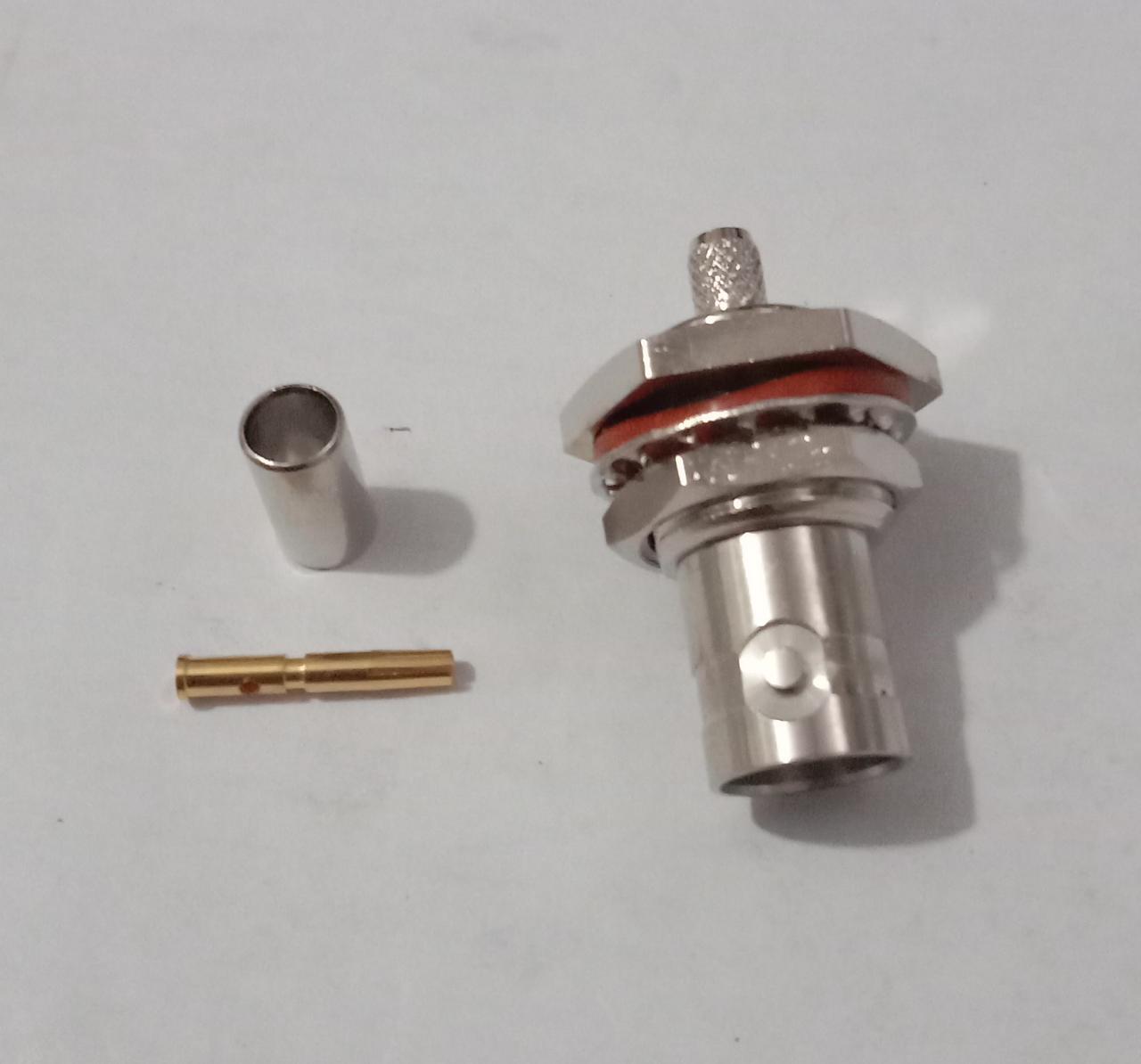

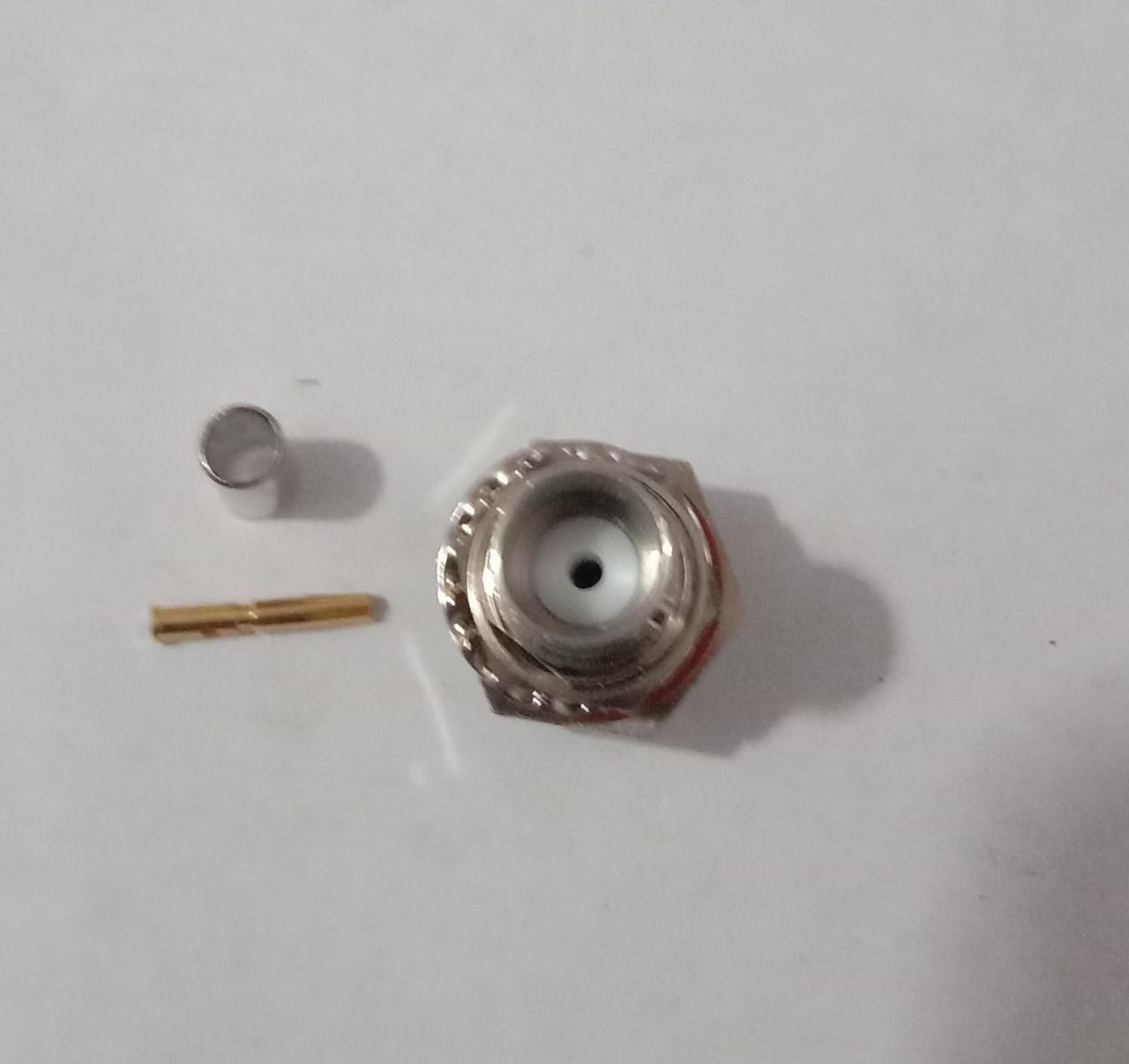

BNC (F) B/H BT-3002 CRIMP Connector

The BNC (F) B/H BT-3002 CRIMP Connector is a female bayonet connector designed for 50Ω impedance RF systems. It is perfect for telecommunications, broadcasting, and RF testing applications that require stable and efficient signal transmission. Supporting a frequency range of DC to 3 GHz, it is suitable for low to medium-frequency RF systems. With a VSWR of ≤1.15 (0–3 GHz), this connector ensures optimal impedance matching, reducing signal reflection and minimizing signal loss.

Constructed with a brass body and silver-plated contacts, the BNC (F) B/H BT-3002 CRIMP Connector offers excellent electrical conductivity, corrosion resistance, and mechanical strength. The crimp termination method ensures a reliable, low-loss connection that is easy to install without the need for soldering. The PTFE insulator provides high dielectric strength and thermal stability, ensuring reliable operation even under harsh conditions. The dielectric strength of ≥2500V RMS guarantees safe performance in high-voltage environments, while the center contact resistance of ≤1.0mΩ and contact resistance of ≤0.25mΩ ensure minimal power loss and efficient signal transmission.

The operating temperature range of -40°C to +85°C allows the BNC (F) B/H BT-3002 CRIMP Connector to be used in a variety of indoor and outdoor environments.

Electrical Specifications:

• Impedance: 50Ω – Ensures efficient signal transmission with minimal loss.
• Frequency Range: DC to 3 GHz – Suitable for low to medium-frequency RF applications.
• VSWR: ≤1.15 (0–3 GHz) – Guarantees minimal reflection and optimal impedance matching.
• Dielectric Strength: ≥2500V RMS – High dielectric strength for secure performance.
• Center Contact Resistance: ≤1.0mΩ – Low resistance for efficient signal transmission.
• Contact Resistance: ≤0.25mΩ – Further reduces power loss and enhances signal efficiency.

Mechanical Specifications:

• Connector Type: BNC (F) – Female bayonet connector for 50Ω systems.
• Termination Method: Crimp – Easy-to-install, reliable connection.
• Operating Temperature: -40°C to +85°C – Suitable for extreme environmental conditions.

Material and Plating:

• Body Material: Brass – Durable and resistant to corrosion.
• Plating: Silver-plated contacts – Ensures superior conductivity and corrosion resistance.
• Insulator: PTFE – Provides high dielectric strength and thermal stability.

Environmental Specifications:

• Operating Temperature: -40°C to +85°C – Built to withstand harsh environments.
• RoHS Compliant – Environmentally friendly materials.

Key Features:

• 50Ω impedance for efficient signal transmission.
• DC to 3 GHz frequency range for RF systems.
• ≤1.15 VSWR ensures minimal reflection and optimal impedance matching.
• Crimp termination for easy installation and secure, low-loss connections.
• Silver-plated contacts for enhanced conductivity and corrosion resistance.
