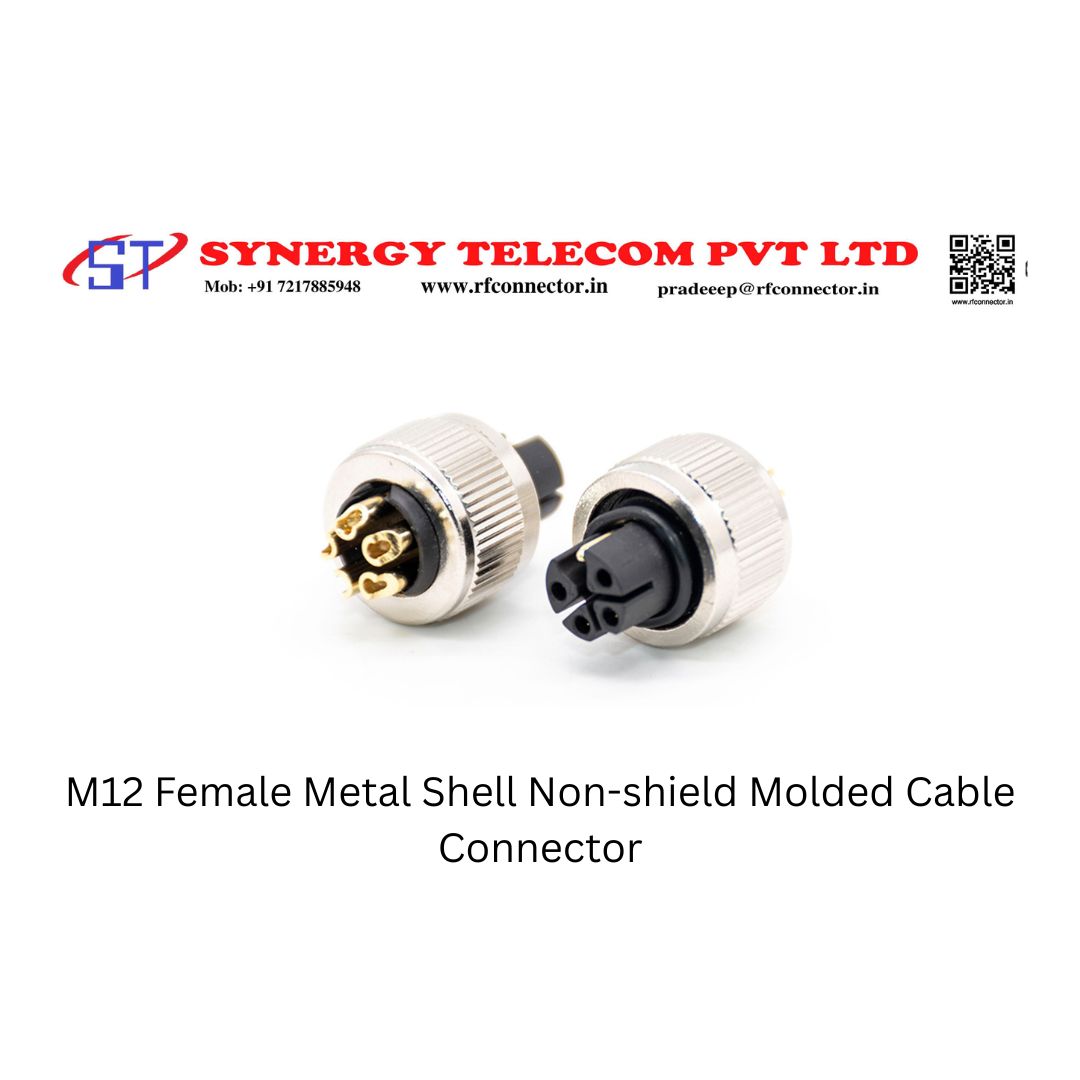

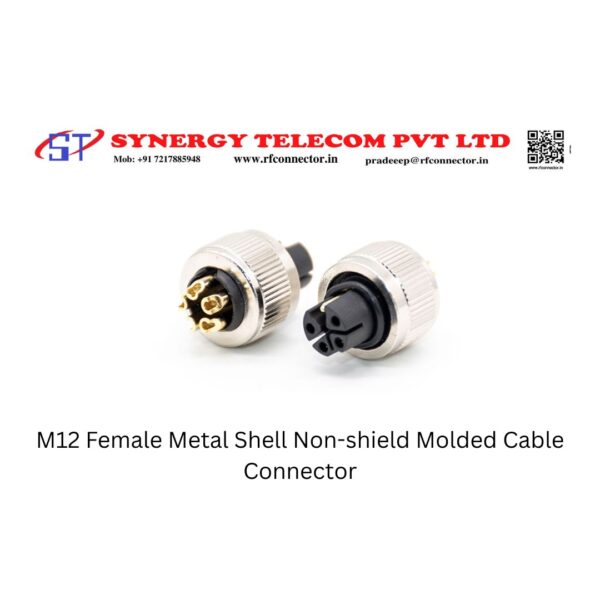

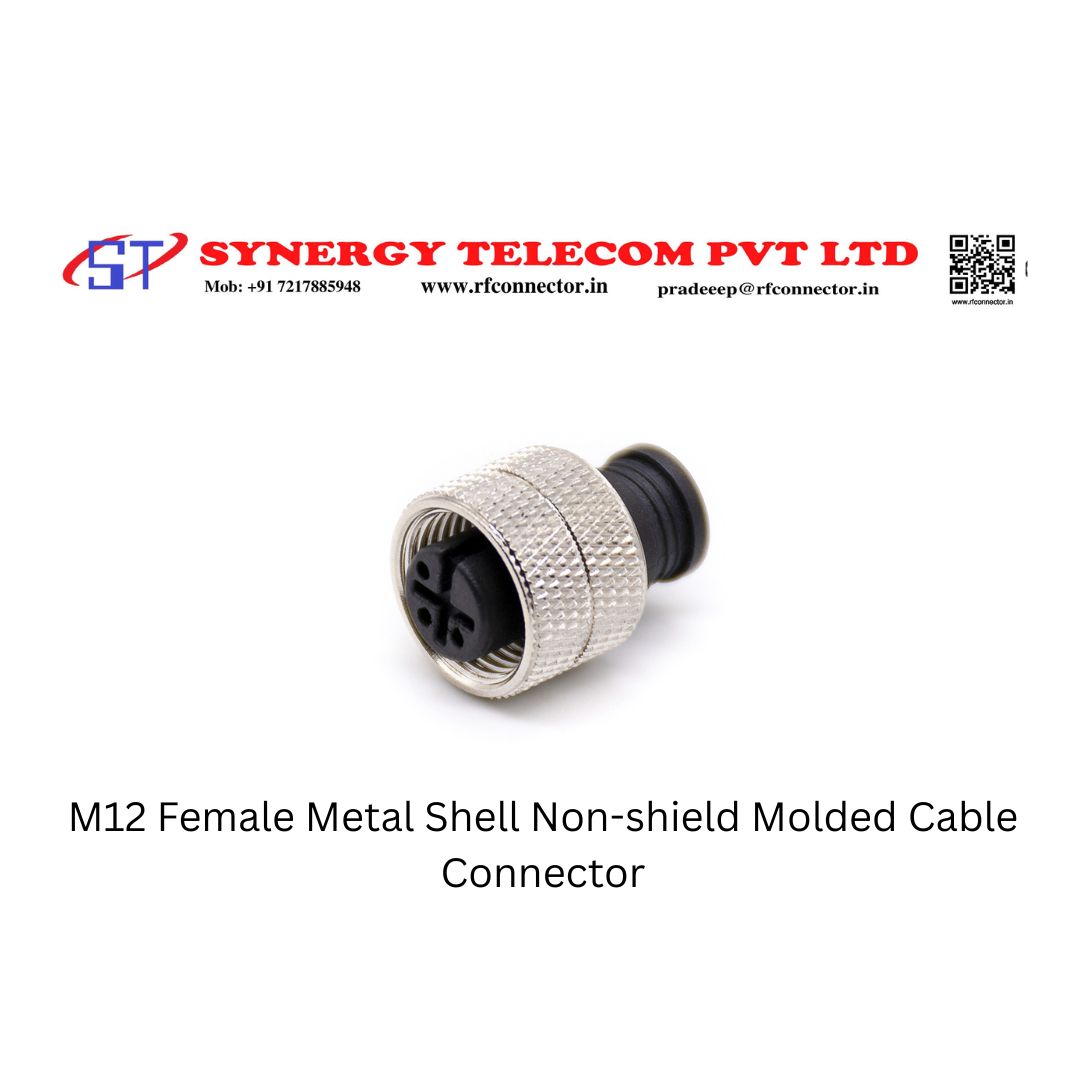

M12 Female Metal Shell Non-Shielded Molded Cable Connector
The M12 Female Metal Shell Non-Shielded Molded Cable Connector is engineered for rugged industrial environments, offering secure signal transmission with durable strain relief. The metal housing ensures mechanical strength, while the non-shielded design suits standard sensor, actuator, and control wiring. Designed for fieldbus systems, it maintains reliable performance in automation setups.
Electrical Specifications:
- Contact Configuration: 3, 4, 5, or 8 Positions (A-Coded)
- Rated Voltage: Up to 250V (depending on contact count)
- Rated Current: 2A to 4A per contact
- Contact Resistance: ≤5mΩ
- Insulation Resistance: ≥100MΩ
- Shielding: None (Non-shielded Design)
Mechanical Specifications:
- Connector Type: M12 Female Plug
- Shell Material: Metal (Nickel-Plated Brass)
- Termination Type: Molded Cable
- Coupling Mechanism: Threaded Locking
- Contact Material: Gold-plated Brass
- Cable Type: PVC or PUR Insulated Cable
Environmental Specifications:
- Operating Temperature: -25°C to +85°C
- Protection Level: IP67 (when mated)
- Resistance: Vibration & Shock Resistant
- Compliance: ROHS, REACH
Key Features:
✔ Metal shell for high mechanical durability
✔ Non-shielded for standard applications
✔ Molded cable offers strain relief and moisture resistance
✔ Threaded M12 coupling ensures secure mating
✔ Ideal for industrial sensor and actuator use
