NISSEI RS 102 SWR METER

Description

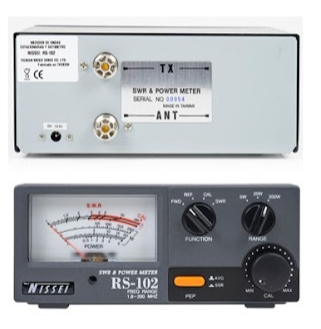

NISSEI RS-102 SWR Meter

The NISSEI RS-102 SWR Meter is a reliable and versatile tool for measuring standing wave ratio (SWR) and power levels in RF systems. Designed for frequency ranges from 1.8~200MHz, it is ideal for HF, VHF, and low UHF applications such as amateur radio, broadcasting, and antenna testing. With a large backlit analog meter, it ensures accurate and easy readability, even in challenging lighting conditions.

Capable of measuring power from 0 to 200W, the RS-102 features a 5W AVG accuracy of ±10%, making it a dependable choice for a variety of RF power levels. It supports a minimum power input of 3W for SWR measurements, ensuring flexibility across different operational setups. The SO-239 connectors and 50Ω impedance guarantee compatibility with standard RF systems, while the 0.1dB insertion loss minimizes impact on the signal path.

Electrical Specifications:

• Frequency Range: 1.8~200MHz – Suitable for HF, VHF, and low UHF operations.
• Power Measurement: 0 to 200W – Ideal for a range of power applications.
• Accuracy: ±10% on 5W Range (AVG).
• Minimum Power for SWR Measurement: 3W – Ensures low-power system compatibility.
• Impedance: 50Ω – Standard for RF systems.

Mechanical Specifications:

• Connectors: SO-239 (UHF Female) – Ensures broad compatibility.
• Display: Large analog meter with backlight – Offers enhanced visibility.
• Insertion Loss: 0.1dB – Preserves signal integrity.

Power Supply and Dimensions:

• Power Supply: 13.8V DC – Stable and reliable power.
• Dimensions: 140 mm (W) x 84 mm (H) x 122 mm (D) – Compact and portable.

Key Features:

• Wide frequency range for HF, VHF, and low UHF applications.
• Power measurement up to 200W with ±10% accuracy on the 5W range.
• Large backlit analog meter for clear and precise readings.
• SO-239 connectors ensure compatibility with standard RF systems.
• Low insertion loss to maintain signal quality.
