SMA (F) BH LMR 100 CRIMP

Description

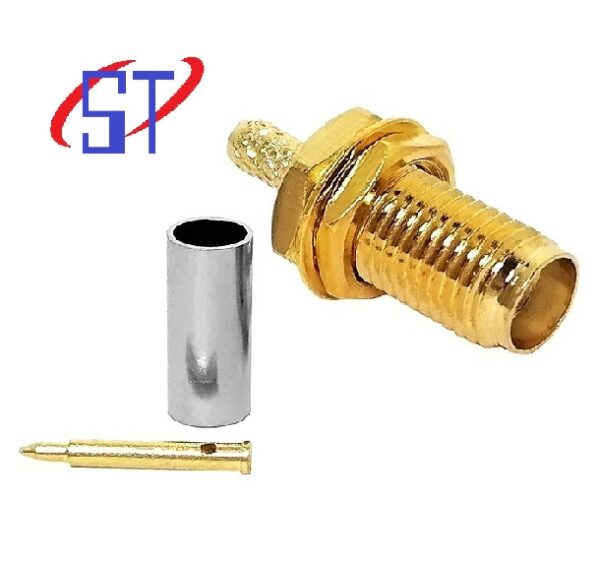

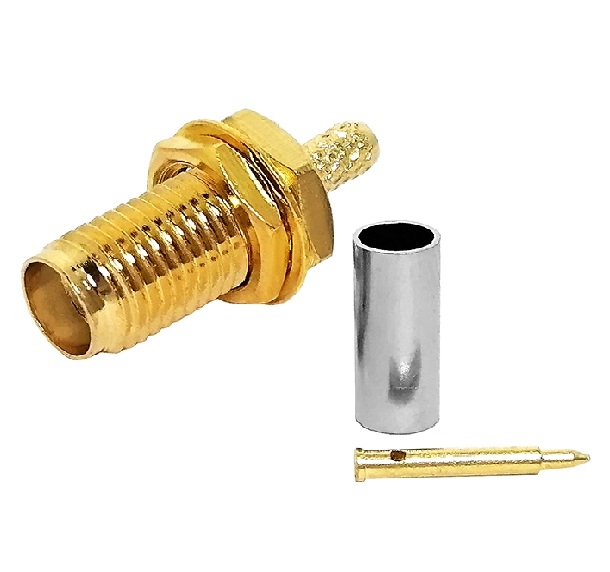

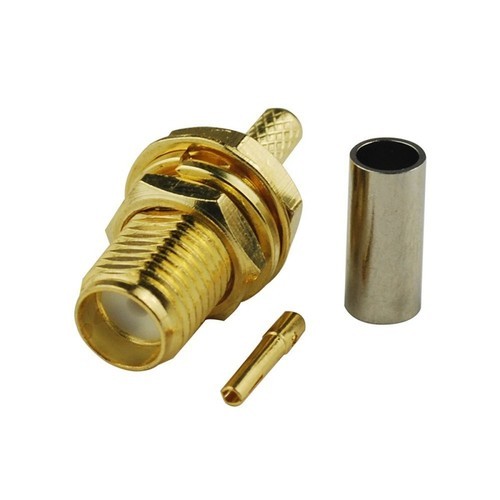

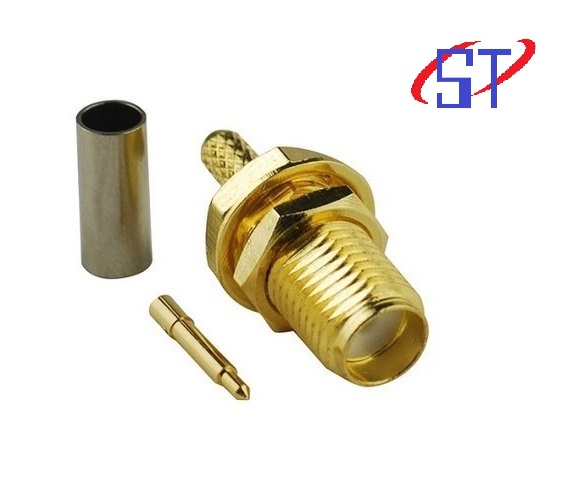

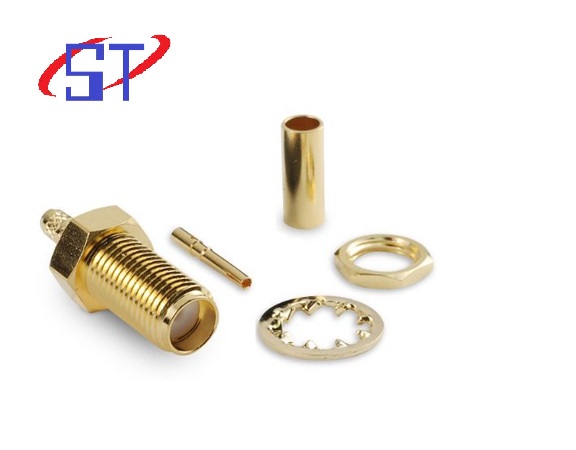

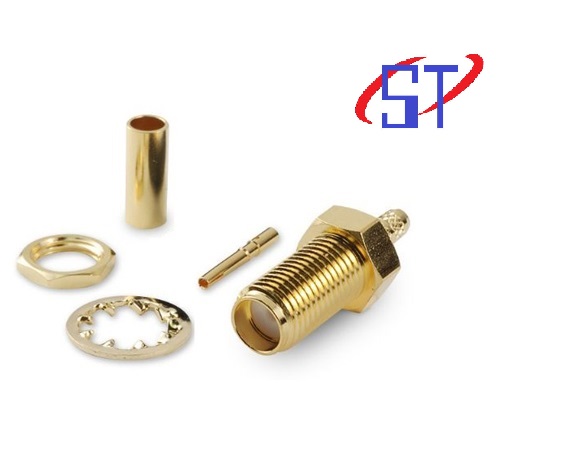

The SMA (Female) Bulkhead LMR 100 Crimp Connector is a high-performance RF connector designed for secure and reliable connections in systems utilizing LMR 100 coaxial cables. With a bulkhead design, it allows for easy mounting onto panels and provides robust mechanical stability. The crimp termination method ensures a secure, low-resistance connection for optimal signal transmission. This connector is suitable for high-frequency applications, including wireless communication systems, antennas, and RF testing equipment, with excellent performance up to 4 GHz.

Electrical Specifications:

• Impedance: 50Ω, ensuring compatibility with RF systems and minimal signal loss.
• Frequency Range: Up to 4 GHz, ideal for high-frequency RF applications.
• VSWR: ≤ 1.15:1, providing superior impedance matching and reducing signal reflections.
• Dielectric Resistance: ≥ 5000MΩ, ensuring high insulation and reliable operation under voltage stress.
• Contact Resistance:
  • Center Contact: ≤ 3mΩ, minimizing power loss and ensuring efficient signal transmission.
  • Outer Contact: ≤ 2.5mΩ, offering consistent electrical performance and grounding.

Mechanical Specifications:

• Connector Type: SMA (Female) Bulkhead with crimp termination for LMR 100 cables.
• Termination Method: Crimp Termination, offering a reliable and secure connection.
• Durability: Rated for 500 mating cycles, ensuring longevity and consistent performance.

Material and Plating:

• Body Material: Brass, providing strength and durability.
• Plating: Gold-plated contacts for superior conductivity and corrosion resistance.
• Insulator: PTFE, ensuring high dielectric strength and thermal stability.

Environmental Specifications:

• Operating Temperature: -40°C to +85°C, suitable for a wide range of environmental conditions.
• RoHS Compliant: Manufactured from environmentally friendly materials.

The SMA (Female) Bulkhead LMR 100 Crimp Connector is ideal for high-frequency RF applications requiring secure, low-resistance connections, and reliable long-term performance in a variety of settings.
