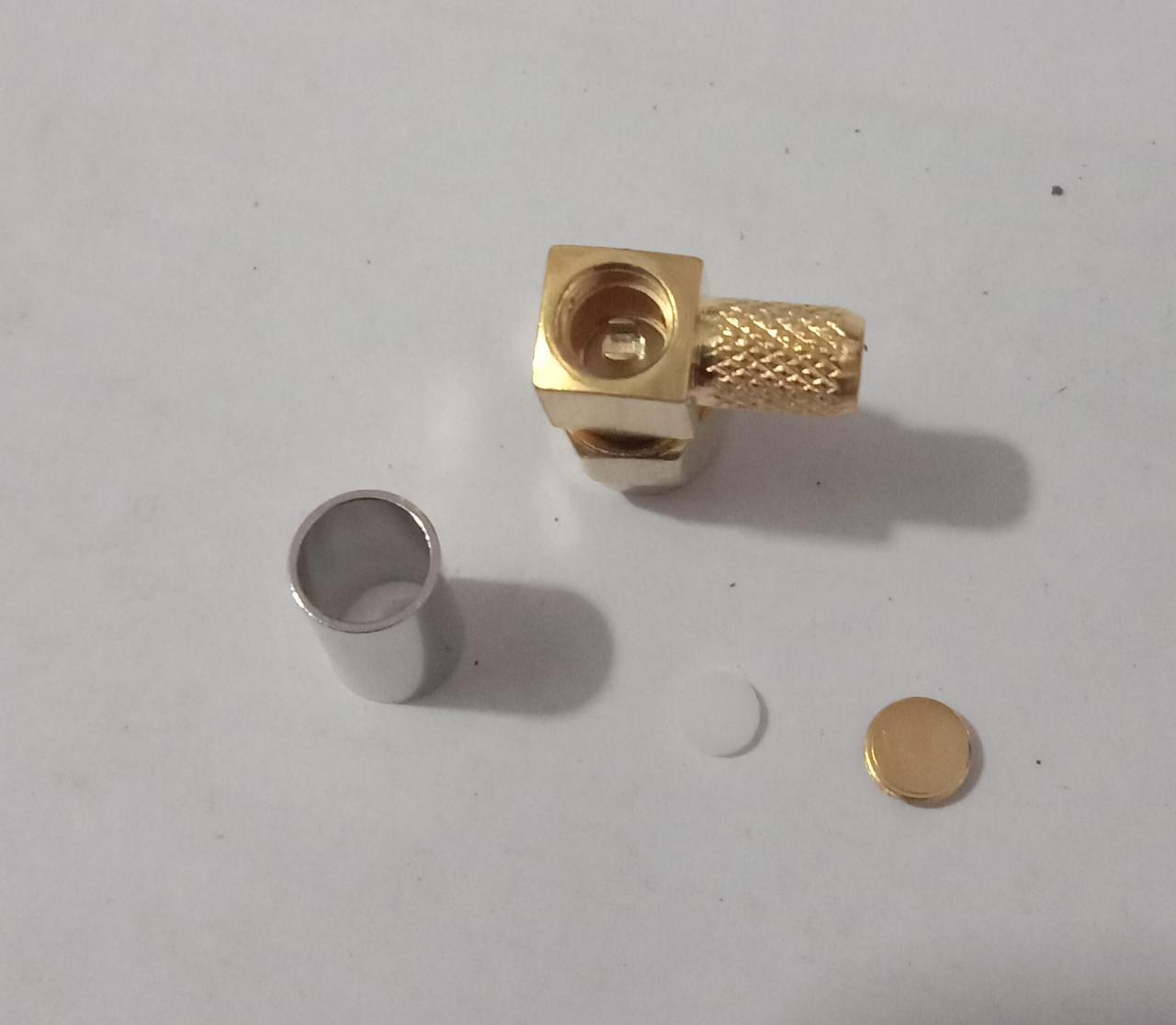

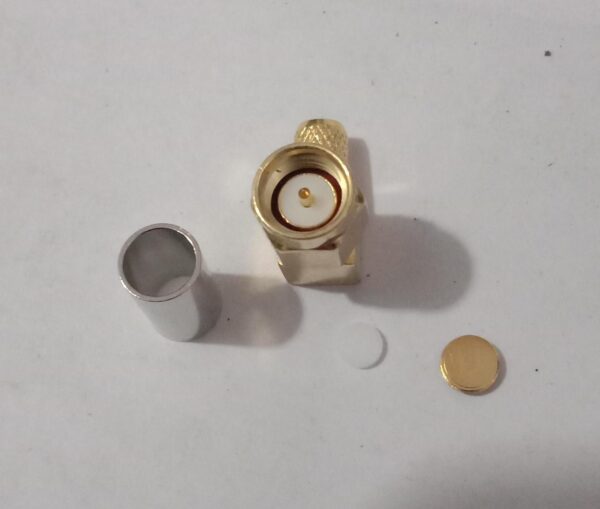

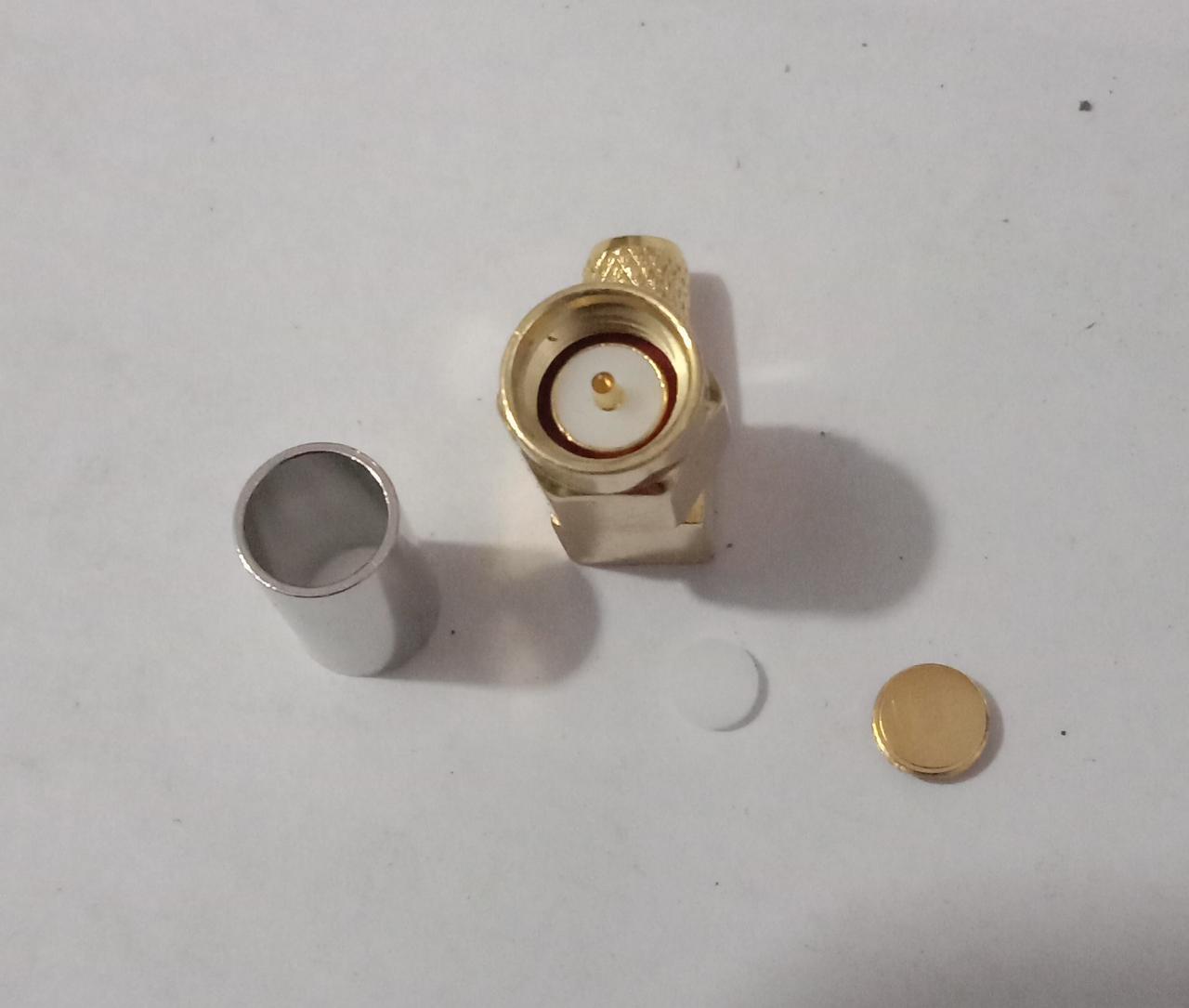

SMA (M) RA LMR 200 CRIMP

Description

The SMA Male Right Angle LMR 200 Crimp Connector is a high-performance 50Ω impedance RF connector designed for use with LMR 200 coaxial cables. The right-angle design makes it ideal for applications where space is limited, ensuring a secure connection in tight spaces without compromising on performance. This connector is capable of supporting frequencies up to 4 GHz, ensuring efficient signal transmission with minimal signal loss. The VSWR of ≤ 1.15:1 guarantees excellent impedance matching and low reflections, making it perfect for telecommunications, wireless communication, and RF testing applications. The crimp termination method ensures a durable and stable connection.

Electrical Specifications:

• Impedance: 50Ω, providing optimal signal transmission with minimal loss.
• Frequency Range: Up to 4 GHz, ideal for high-frequency RF applications.
• VSWR: ≤ 1.15:1, ensuring excellent impedance matching and minimal signal reflections.
• Contact Resistance: Center Contact: ≤ 3mΩ, Outer Contact: ≤ 2.5mΩ, ensuring stable electrical performance and low power loss.
• Dielectric Resistance: ≥ 5000MΩ, providing excellent insulation and long-term reliability.

Mechanical Specifications:

• Connector Type: SMA Male Right Angle, designed for LMR 200 coaxial cables.
• Termination Method: Crimp, ensuring a secure and permanent connection.
• Durability: Rated for 500 mating cycles, ensuring long-term reliability.

Material and Plating:

• Body Material: Brass, offering strength and durability.
• Plating: Gold-plated contacts for superior conductivity and corrosion resistance.
• Insulator: PTFE, ensuring high dielectric strength and thermal stability.

Environmental Specifications:

• Operating Temperature: -40℃ to +85℃, making it suitable for a wide range of environmental conditions.
• RoHS Compliant: Manufactured with environmentally safe materials.

The SMA Male Right Angle LMR 200 Crimp Connector is perfect for high-performance RF systems, offering secure and efficient connections, even in tight spaces. Its right-angle design and crimp termination provide reliable, low-loss connections in telecommunications, wireless systems, and RF testing environments.

Key Features:

• 50Ω impedance for efficient signal transmission.
• Right-angle design for use in tight spaces.
• Crimp termination for a secure and permanent connection.
• Gold-plated contacts for enhanced conductivity and corrosion resistance.
• Supports up to 4 GHz frequency range.
