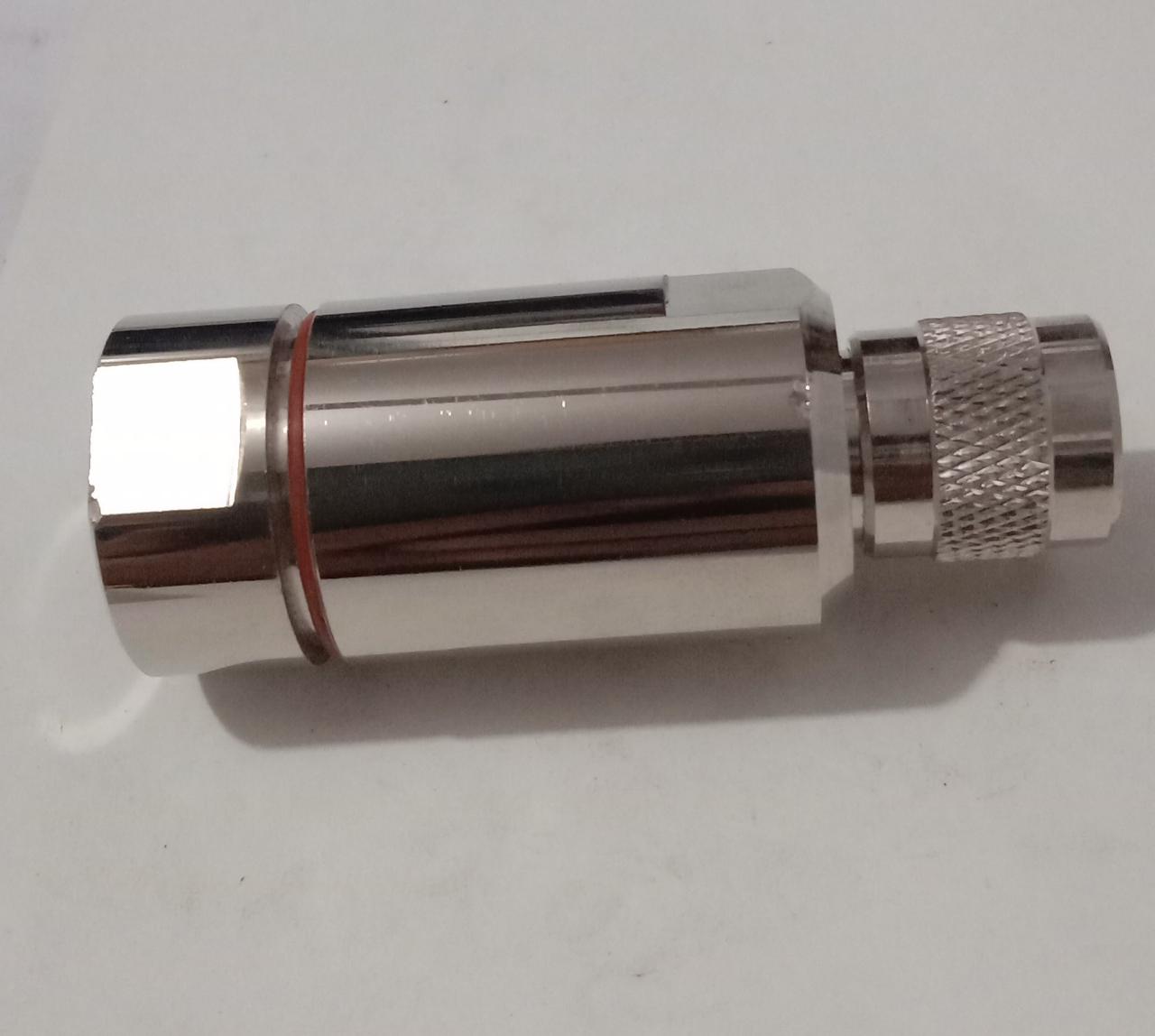

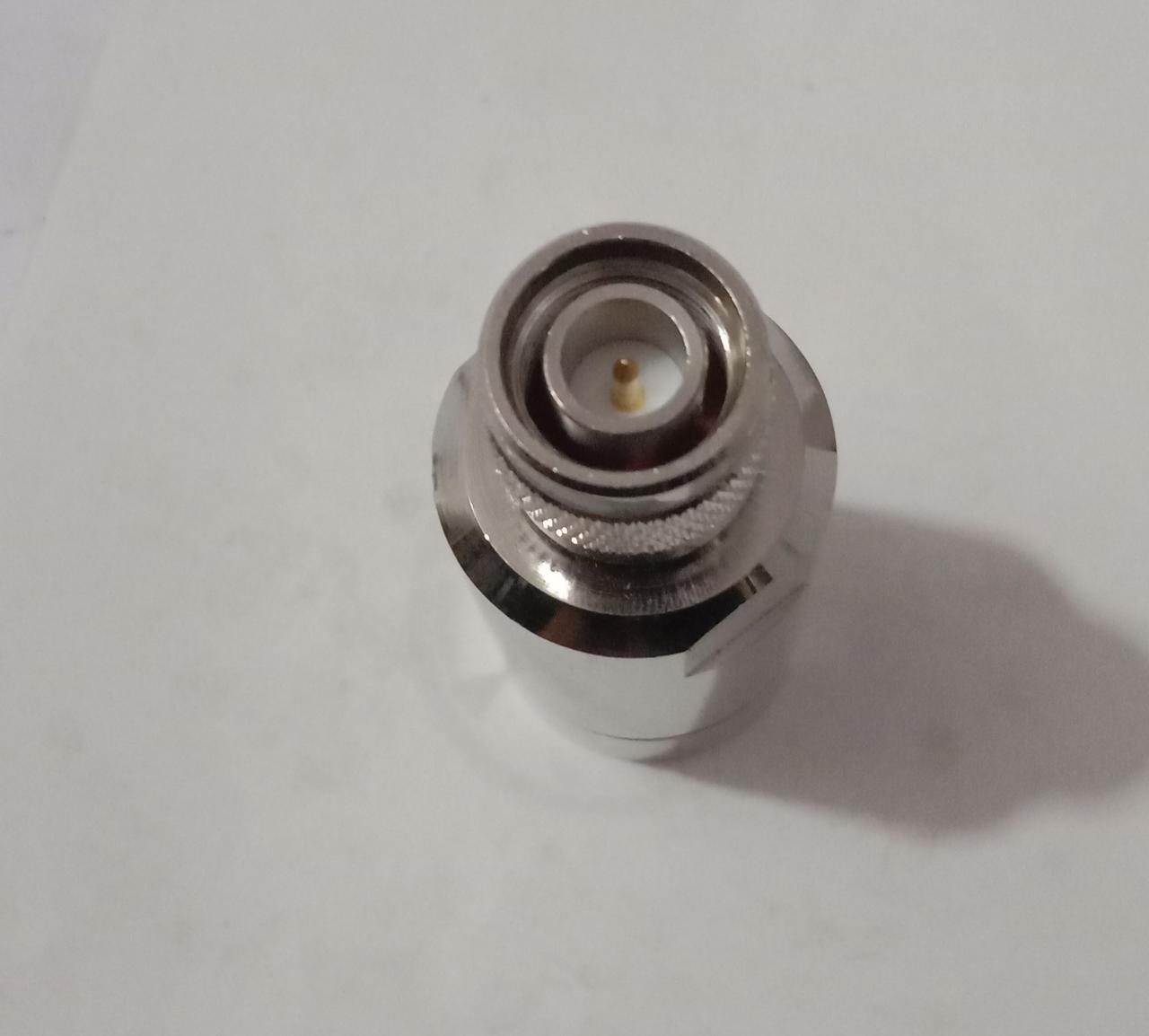

TNC (M) 1/2″ LDF CLAMP

Description

The TNC Male 1/2″ LDF Clamp connector is a high-performance RF component engineered for secure and efficient signal transmission in demanding applications. Featuring a clamp termination, this connector provides a robust and vibration-resistant connection, ensuring long-term reliability in a wide range of environments. Designed specifically for use with 1/2″ LDF (Large Diameter Foam) coaxial cables, it is ideal for high-frequency telecommunications, wireless communication systems, and RF testing where low-loss signal transmission is essential.

Electrical Specifications:

• VSWR: ≤ 1.15 (0–6 GHz), ensuring minimal signal reflection and efficient power transfer across a wide frequency range.
• Frequency Range: DC to 6 GHz, making it suitable for high-speed RF applications, including cellular networks, broadcast systems, and RF testing.
• Dielectric Strength: ≥ 2500V RMS, providing excellent insulation to protect against high-voltage breakdowns and enhance safety.
• Characteristic Impedance: 50 ohms, ensuring compatibility with industry-standard RF systems and optimal signal transmission performance.
• Center Contact Resistance: ≤ 1.0 mΩ, reducing signal loss and maximizing energy transfer efficiency.
• Outer Contact Resistance: ≤ 0.25 mΩ, ensuring stable grounding and preserving signal integrity over long-term use.

Mechanical Specifications:

• Connector Type: TNC Male, designed for use with 1/2″ LDF coaxial cables, providing a secure and reliable connection in various applications.
• Termination Method: Clamp, offering a vibration-resistant connection that is both durable and easy to assemble.
• Durability: Rated for up to 500 mating cycles, ensuring reliable performance even in high-use environments.

Material and Plating:

• Material: Brass, offering high mechanical strength and long-term durability.
• Plating: Nickel-plated for enhanced corrosion resistance, with gold-plated center contacts to improve conductivity and reduce signal degradation.

Environmental Specifications:

• Operating Temperature: -55°C to +85°C, ensuring reliable performance in both extreme indoor and outdoor environments.

The TNC Male 1/2″ LDF Clamp connector is ideal for RF communication systems, antenna connections, and other high-frequency applications requiring exceptional performance, low-loss transmission, and long-lasting reliability.
