UHF M LMR 100 CRIMP

Description

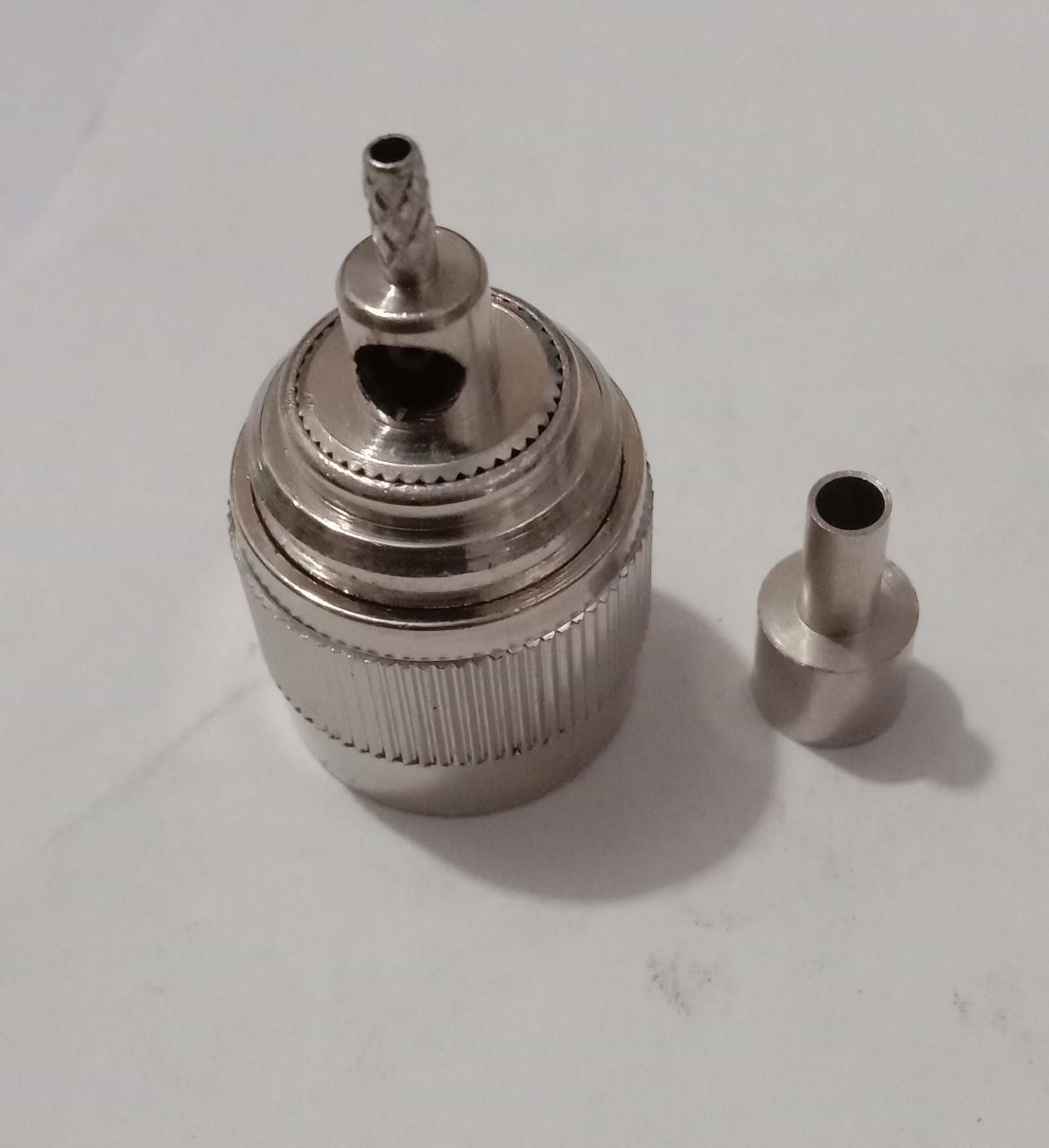

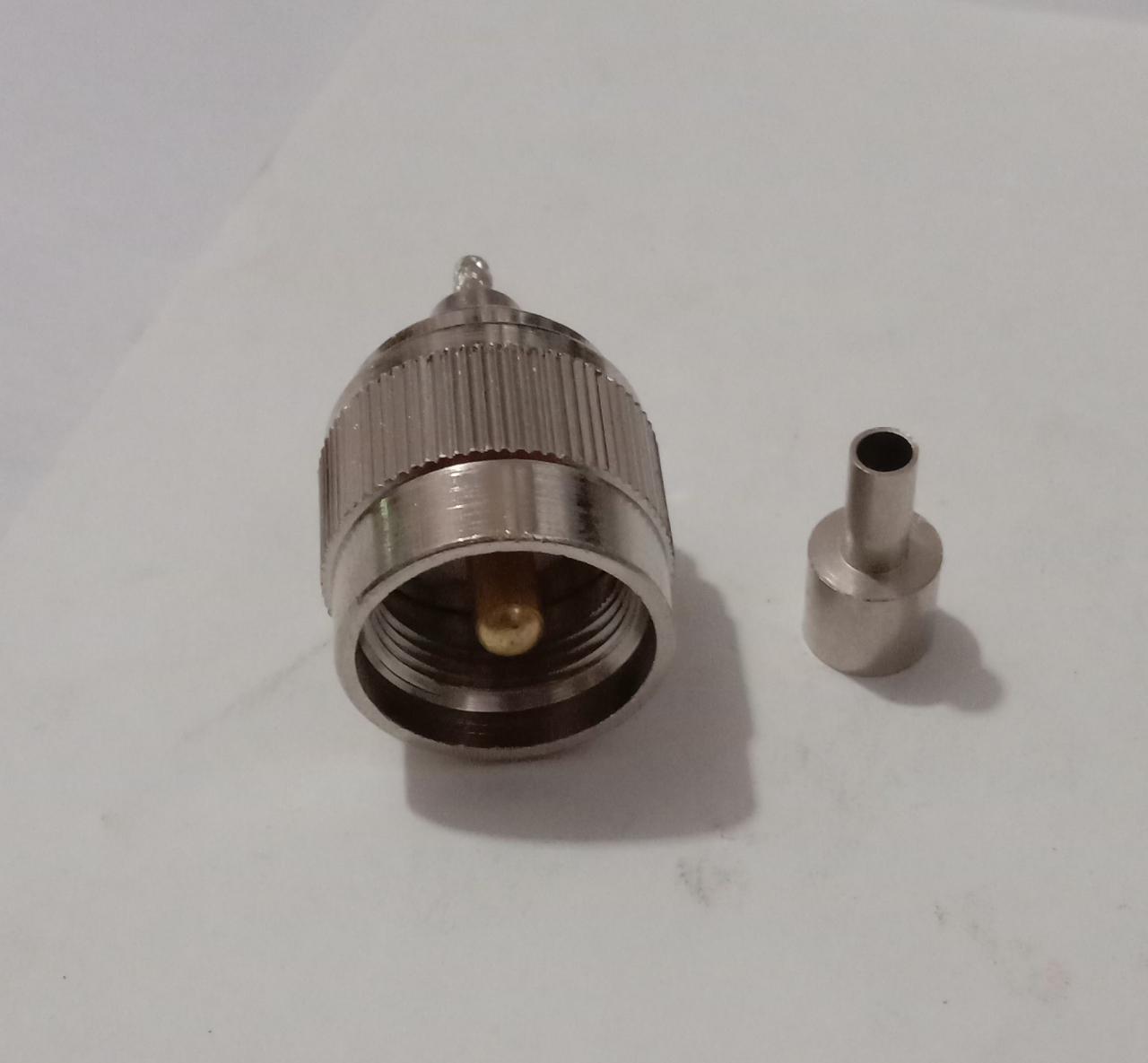

UHF M LMR 100 CRIMP Connector

The UHF M LMR 100 CRIMP Connector is a male crimp termination connector designed for 50Ω impedance systems, making it an ideal solution for telecommunications, broadcasting, and RF testing applications. With a frequency range of DC to 3 GHz, this connector supports low to medium-frequency RF systems, ensuring reliable signal transmission. The VSWR of ≤1.15 (0–3 GHz) guarantees optimal impedance matching and minimal signal reflection, preserving signal integrity and minimizing loss.

Constructed from brass with silver-plated contacts, this connector provides excellent electrical conductivity, corrosion resistance, and mechanical durability. The LMR 100 crimp termination ensures a secure and stable connection, ideal for systems where performance and reliability are critical. The PTFE insulator offers high dielectric strength and thermal stability, which is essential for long-term operation in harsh conditions. With a dielectric strength of ≥2500V RMS, this connector ensures safe and reliable performance even in high-voltage environments. The center contact resistance of ≤1.0mΩ minimizes power loss, while the contact resistance of ≤0.25mΩ ensures optimal signal transmission.

With an operating temperature range of -40°C to +85°C, the UHF M LMR 100 CRIMP Connector is designed to withstand extreme environmental conditions, ensuring long-lasting, reliable operation in demanding RF applications.

Electrical Specifications:

• Impedance: 50Ω – Ensures efficient signal transmission with minimal loss.
• Frequency Range: DC to 3 GHz – Ideal for low to medium-frequency RF applications.
• VSWR: ≤1.15 (0–3 GHz) – Guarantees optimal impedance matching and minimal reflection.
• Dielectric Strength: ≥2500V RMS – High dielectric strength for secure performance.
• Center Contact Resistance: ≤1.0mΩ – Low resistance for efficient signal transmission.
• Contact Resistance: ≤0.25mΩ – Further reduces power loss and enhances signal efficiency.

Mechanical Specifications:

• Connector Type: UHF M for 50Ω systems.
• Termination Method: LMR 100 Crimp – Provides a secure and reliable connection.
• Operating Temperature: -40°C to +85°C – Suitable for extreme environmental conditions.

Material and Plating:

• Body Material: Brass – Durable and resistant to corrosion.
• Plating: Silver-plated contacts – Ensures superior conductivity and corrosion resistance.
• Insulator: PTFE – Provides high dielectric strength and thermal stability.

Environmental Specifications:

• Operating Temperature: -40°C to +85°C – Built to withstand harsh environments.
• RoHS Compliant – Environmentally friendly materials.

Key Features:

• 50Ω impedance for efficient signal transmission.
• DC to 3 GHz frequency range for RF systems.
• ≤1.15 VSWR ensures minimal reflection and optimal impedance matching.
• LMR 100 crimp termination for secure, durable connections.
• Silver-plated contacts for enhanced conductivity and corrosion resistance.
